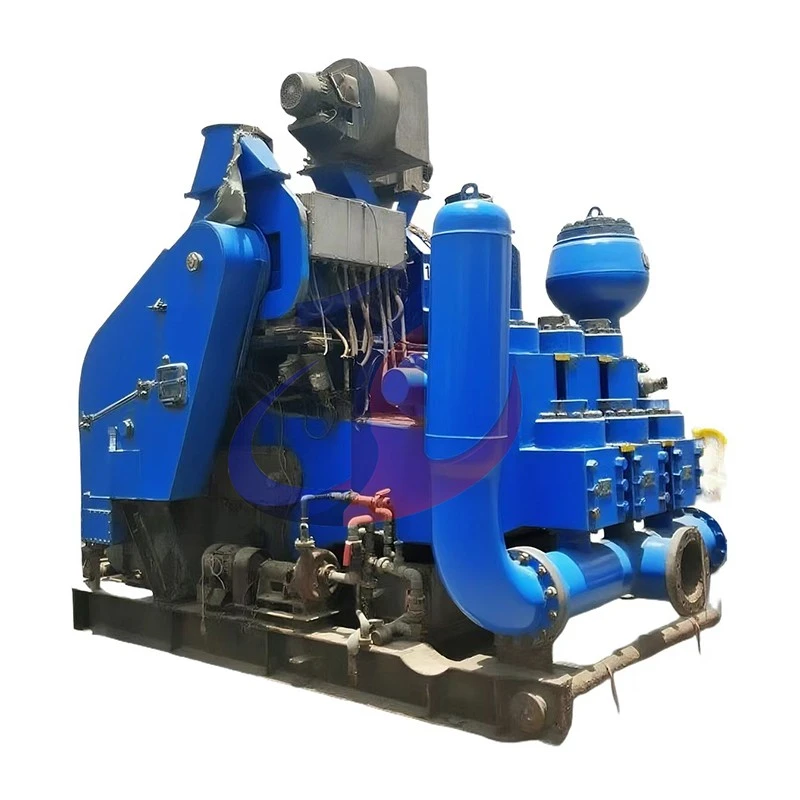

Emsco FC-1600-HP Mud Pump

The "HP" (High-Pressure) designation explicitly indicates that the FC-1600-HP can operate continuously and stably at working pressures up to 7500 PSI (51.7 MPa / 527 kg/cm²). In today's increasingly complex drilling projects, this high-pressure capability is crucial for successful oil and gas resource extraction, as it provides powerful hydraulic energy. The pursuit of 7500 PSI capability reflects the industry's trend towards developing deeper and more complex oil and gas reservoirs. The FC-1600-HP is a mature solution, directly provided by the OEM, that aligns with this trend.

We are looking for a cooperative partner to expand our business.

Material:

The three fluid end modules are precisely machined from high-strength, heat-treated forged alloy steel, typically using 35CrMo or 40CrMnMo (or similar high-tensile strength alloys like 4130 for certain special designs). This material exhibits excellent fatigue resistance, fracture toughness, and wear resistance under high cyclic loads.

Superior Manufacturing Process:

The modules are manufactured in full compliance with API 7K standards. The forging process ensures a uniform grain structure, eliminating defects such as laminations, cracks, or impurities. The entire manufacturing process employs strict Non-Destructive Testing (NDT) methods.

Interchangeability:

The fluid end modules and their components are designed to OEM and other API 7K compatible component standards, featuring complete interchangeability for easy maintenance and global spare parts supply.

Type and API Size: The FC-1600-HP is equipped with API #7 full-open valve assemblies as standard. This design maximizes flow efficiency and reduces fluid turbulence, thereby enhancing overall pump performance.

Materials and Manufacturing Process: The valve bodies and seats are meticulously crafted from high-quality forged alloy steel (AISI 8620 or 20CrNiMo). They undergo specialized carburizing and heat treatment processes, with surface hardness typically reaching HRC 60+, providing excellent abrasive wear resistance while maintaining sufficient core toughness to absorb operational stresses.

Polyurethane Valve Inserts: Equipped with high-performance bonded polyurethane valve inserts. These inserts are specially formulated with the following characteristics:

High Pressure and Temperature Resistance: Capable of withstanding pressures up to 7500 PSI and temperatures up to 220°F (104°C) under standard conditions, with options for harsh conditions resisting temperatures up to 300°F (149°C).

Chemical Corrosion and Wear Resistance: Excellent resistance to oil-based, water-based, and synthetic-based drilling fluids, as well as abrasive solid particles.

Enhanced Sealing and Service Life: Reliable bonding technology and superior material properties ensure a secure seal and extended service life.

Standard Type: Standard OEM high-pressure fluid ends are equipped with screw-in valve covers. This design provides a secure and reliable pressure seal for high-pressure operations up to 7500 PSI.

Material: Manufactured from high-strength steel to match the fluid end's pressure rating.

Liners – Maximizing Wear Performance

Recommended Type for HP Conditions:

For optimal performance and longest service life in 7500 PSI applications, the FC-1600-HP is typically equipped with high-chrome bimetallic liners or high-quality zirconia ceramic liners.

High-Chrome Bimetallic Liners:

Characterized by a centrifugally cast high-chrome cast iron inner sleeve (hardness HRC 60-69) combined with a forged steel outer shell. This combination provides excellent wear and corrosion resistance.

Zirconia Ceramic Liners:

Offer exceptional hardness (HRC >90), impact strength, and a finer surface finish, leading to significantly extended service life (2000-5000+ hours) and reduced friction on pistons, making them particularly suitable for abrasive or high-temperature environments.

Manufacturing and Design:

Liners feature a high-strength forged steel outer shell. The inner bore is precision-honed to a mirror finish to maximize piston life. Many high-pressure liners incorporate an "HP" lip design at the trailing end to prevent the inner sleeve from sliding under high pressure.

HP Condition Pistons: Utilize bonded polyurethane pistons with a high-strength forged 42CrMo steel core. The polyurethane is typically a dual-durometer compound, specially designed to resist tearing, abrasion, extrusion, and chemical attack from various drilling fluids at 7500 PSI pressure and high temperatures (generally up to 220°F or higher, depending on the specific formulation), while maintaining sealing integrity.

Piston Rods: Manufactured from forged SAE 4140 or 42CrMo alloy steel, then heat-treated and hard chrome plated. This ensures high tensile strength, excellent wear resistance, and corrosion protection. A one-piece piston rod design is employed for structural integrity.

Discharge Manifold Outlet: The FC-1600-HP is equipped with a 5-inch API flange rated for 7500 PSI working pressure, providing a safe and reliable connection for high-pressure discharge lines. This typically complies with API 6A 6BX type flange specifications for this pressure rating.

Suction Manifold Inlet: Features a large-diameter 12-inch flanged suction connection to ensure optimal fluid filling and minimize cavitation.

The power end of the EMSCO FC-1600-HP is its robust backbone, reliably converting 1600 HP of input power into the high-intensity reciprocating motion required by the 7500 PSI fluid end. Its design prioritizes durability, smooth operation, and ease of maintenance to meet the demands of continuous high-load operation.

Frame – The Foundation of Strength

Structure: Utilizes a rugged, heavy-duty frame, typically a Fabriform™ welded steel plate structure or an equivalent high-strength pre-fabricated steel structure. Post-weld heat treatment (stress relief) is crucial for ensuring dimensional stability and improving fatigue life under the high loads associated with 7500 PSI operations.

Design Philosophy: Engineered for optimal load distribution and minimized vibration, thereby maintaining the alignment of critical components like the crankshaft and crosshead, extending component life.

Crankshaft – The Hub of Power Conversion

Materials and Manufacturing: Precisely manufactured from forged high-strength alloy steel (e.g., modified AISI 4340 or specialized grades like 35CrMo/40CrMnMo). The forging process, combined with meticulous heat treatment (quenching and tempering), endows the crankshaft with excellent tensile strength, toughness, and fatigue resistance. The crankshaft undergoes dynamic balancing to ensure smooth, low-vibration operation, which is critical for reducing wear on bearings and other components.

Gear Train – Efficient and Durable Power Transmission

Type: Features precision-machined double-helical (herringbone) gears. This design ensures smooth, quiet power transmission, high torque carrying capacity, balanced axial thrust, and minimal backlash, contributing to extended gear and bearing life.

Materials and Standards: Gears and pinion shafts are typically machined from forged alloy steel and heat-treated for optimal hardness and wear resistance.

Gear Ratio: The gear ratio for the FC-1600 model is typically around 4.31:1 or 4.206:1.

Bearings – Supporting High-Load Operation

Main Bearings (Crankshaft): Heavy-duty double-row spherical roller bearings are typically used to support the crankshaft, capable of withstanding high radial loads and accommodating some axial misalignment. Some designs may use straight roller bearings.

Pinion Shaft Bearings: Robust spherical roller bearings or cylindrical roller bearings are used to handle the high speeds and heavy loads on the pinion shaft.

Connecting Rod Bearings:

Big End (Eccentric): Typically single-row short cylindrical roller bearings.

Small End (Crosshead Pin): Typically double-row long cylindrical roller bearings.

"Shell-type replaceable" connecting rod bearings. Documentation for HHF1300/1600 (similar to Emsco F-series) mentions single-row short cylindrical roller bearings for the connecting rod big end and double-row long cylindrical roller bearings for the small end. RS-F1300L documentation mentions double-row spherical roller bearings for the crankshaft.

Connecting Rods – Transmitting Immense Force

Materials and Design: Manufactured from high-strength forged alloy steel (e.g., 42CrMo or similar materials), specifically designed for high load capacity and fatigue resistance.

Crosshead and Guides – Precisely Guiding Reciprocating Motion

Crosshead Material: Typically high-quality cast steel or ductile iron.

Crosshead Guide Material: Replaceable guides made from wear-resistant materials, typically manganese bronze, for low friction and extended service life.

Lubrication System – Ensuring Smooth Operation

Type: Employs a combination of forced lubrication and splash lubrication, providing comprehensive lubrication for all critical moving parts, including gears, bearings, crosshead, and guides.

Components: Includes a built-in gear oil pump, an oil filter, and often an oil cooler (heat exchanger), especially for continuous high-load operations. Equipped with a pressure gauge to monitor oil pressure.

The following performance parameter table clearly demonstrates the exceptional performance achievable with the EMSCO FC-1600-HP mud pump when equipped with its standard 7500 PSI fluid end, coupled with different liner sizes.

EMSCO FC-1600-HP Performance Parameters (7500 PSI Fluid End)

(Rated Power: 1600 HP @ 120 SPM, Stroke: 12 inches)

Key Accessories: Enhancing Performance and Maintenance Convenience

To further enhance the performance, safety, and maintenance convenience of the EMSCO FC-1600-HP, we offer a range of OEM-certified accessories. These accessories, like the pump itself, are designed and manufactured to the highest standards.

Pulsation Dampener:

Function: For high-pressure mud pumps, a pulsation dampener is an essential component that effectively dampens pressure fluctuations in the discharge line, protecting downstream equipment from pressure shocks and ensuring smooth drilling fluid delivery.

Applicable Type for HP Models: Typically uses a high-pressure bladder-type pulsation dampener suitable for 7500 PSI conditions (e.g., K-20 type or equivalent).

Materials and Manufacturing: The dampener housing is typically made of forged or cast high-strength steel, with an internal bladder made of durable elastomer. Connection flanges comply with API standards.

Shear Pin or Manually Resettable Safety Valve:

Function: Provides critical protection in case of pump or system overpressure, preventing equipment damage.

Applicable Type for HP Models: Uses an API-compliant shear pin safety valve or a manually resettable safety valve, with a pressure rating that covers the pump's maximum working pressure (e.g., settable range up to 7500 PSI or higher).

Materials and Manufacturing: The valve body is typically made of high-strength steel. The shear pin is precisely manufactured to ensure accurate shearing at the preset pressure.

Liner Gland System:

Standard Configuration: OEM standard configuration typically uses a metal-to-metal liner locking structure, securing the liner with a threaded ring/gland.

Advanced Options (Accessories/Upgrades):

Blak-JAK™ Liner Gland System: (Primarily from NOV) Applicable to FC-1600, composed of Lok-CEL™ (high-yield strength alloy steel) and Hydra-CEL™ (aerospace-grade aluminum alloy). This system significantly reduces liner change time and enhances operational safety.

Sur-Lock® Liner Gland: (Provided by Premium Oilfield Technologies) Utilizes a torque-multiplying gear system for quick, hammerless liner changes.

Discharge Strainer/Filter Tee:

Function: Protects downstream equipment from large solid debris.

Type: Typically a five-way discharge strainer tee suitable for high-pressure conditions.

Materials and Manufacturing: Manufactured from high-strength steel, designed to comply with API flange pressure ratings.

Liner Spray/Wash System:

Function: Cools and lubricates the liners and pistons, extending their service life.

Components: Includes a spray pump (typically centrifugal, belt-driven by the pinion shaft or by an independent motor), a cooling water tank, and spray lines/nozzles.

Materials and Manufacturing: Pump and piping are made of corrosion-resistant materials.

Applications

The EMSCO FC-1600-HP Triplex Mud Pump, with its exceptional high-pressure performance and robust design, is widely used in demanding oil and gas drilling operations.

Primary Use:

Specifically designed for high-demand drilling fluid circulation during oil and gas exploration and production, particularly for deep well drilling and complex formation operations that require high pressures up to 7500 PSI and powerful hydraulic energy. Its ability to handle "complex formations" and "deep well drilling" means it can not only withstand high pressure but also process potentially more abrasive or complex mud systems associated with such environments.

Operating Environment:

Due to its robust and compact design, the FC-1600-HP mud pump is suitable for both onshore and offshore drilling rigs.

Versatility:

Capable of efficiently handling various types of drilling fluids, including water-based mud, oil-based mud, and synthetic-based mud.

OEM Support and Commitment

As the OEM manufacturer of the EMSCO FC-1600-HP, we not only provide exceptional products but are also committed to offering comprehensive support and services to our customers, ensuring your equipment consistently operates at its best.

Genuine Spare Parts Supply:

We ensure the provision of genuine OEM spare parts that meet original factory high standards. These parts have the same quality and precision as the original components, ensuring a perfect match for optimal pump performance and extended service life.

Professional Technical Support and Service:

We have an experienced technical support team that provides professional technical consultation, on-site service, and maintenance training programs to help customers better use and maintain their FC-1600-HP mud pumps.

Comprehensive Warranty Commitment:

The EMSCO FC-1600-HP is backed by our comprehensive OEM warranty service, providing strong assurance for your investment.

For complex and mission-critical equipment like high-pressure mud pumps, comprehensive OEM support (including spare parts, service, and warranty) is a crucial factor influencing total cost of ownership and operational uptime. Customers are not just purchasing a product but also a long-term operational partnership.
