Massarenti Mud Pumps

Your Professional Massarenti Mud Pumps Supplier

We are a certified manufacturer of mud pumps, plunger pumps, and fracturing pumps, supplying complete pump systems, accessories, and centrifuges for oil drilling, mining, and industrial use. With API 7K and ISO 9001 certification, advanced CNC machining, and full in-house testing, we deliver reliable equipment for high solids, high pressure, and harsh environments. Our products are widely applied in oil & gas drilling, mining slurry transport, environmental engineering, and high-pressure fracturing operations.

Quality Control
Multi-axis CNC machining and complete testing systems ensure consistent quality, verified performance, and full traceability for every critical component.

Global Market Experience
Strong performance in North America, Russia, and the Middle East supports reliable supply and service.

High-Quality Service
From pre-sales engineering analysis to installation, training, and after-sales maintenance, we help customers reduce risk, improve uptime, and extend equipment service life.

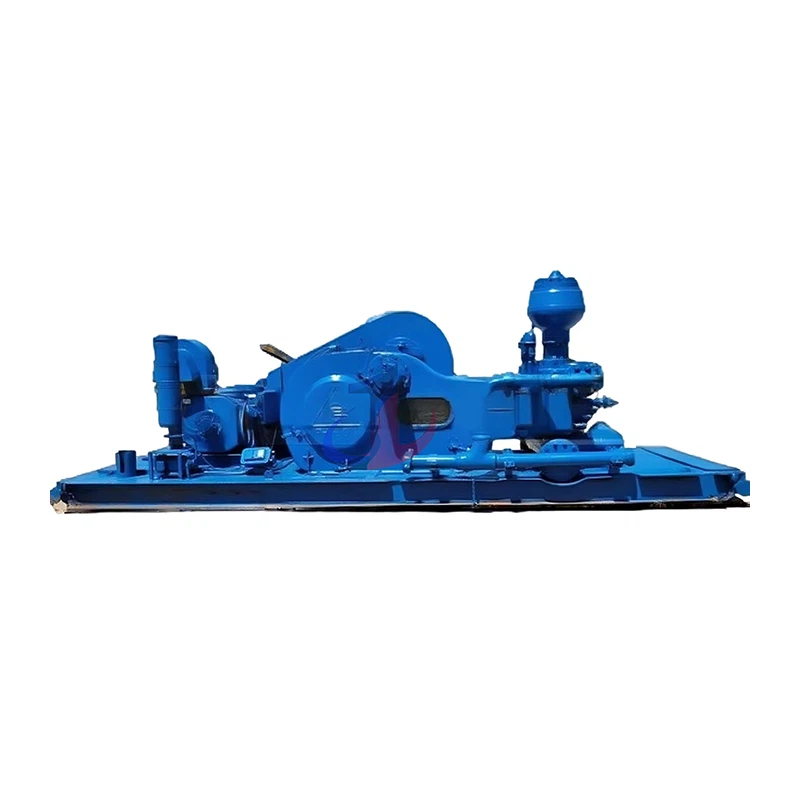

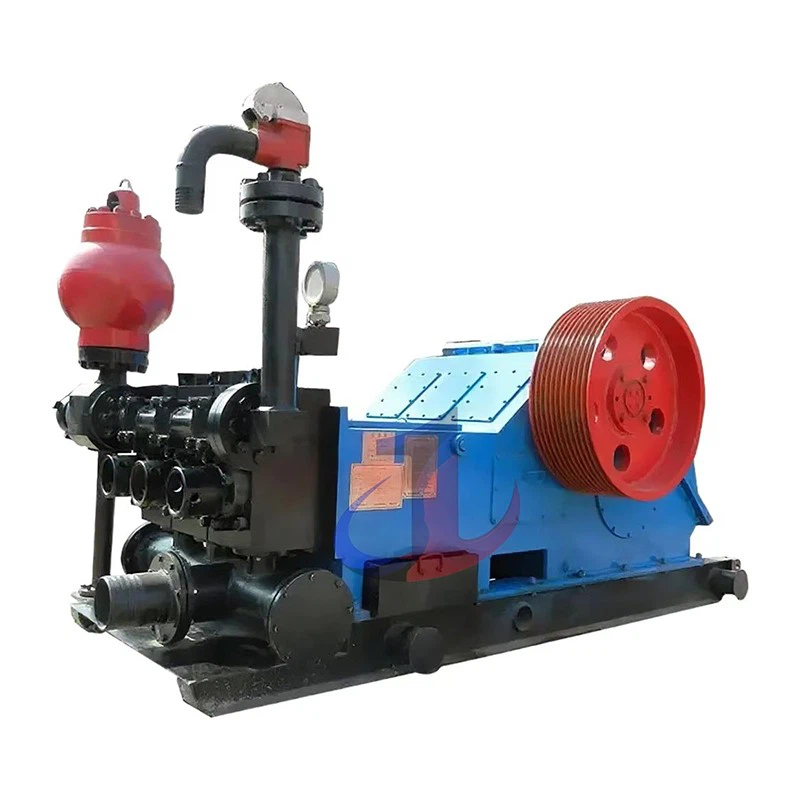

MASSARENTI MAS 1000 Mud Pump
Meta Description (Seo) : explore the Massarenti Mas 1000, the definitive 1000hp Triplex Mud Pump. Its forged alloy steel components, fully API 7K compliant, provide unparalleled reliability for both

Parameter

Rated input power	1000hp (746KW)
Rated speed	140SPM (Strokes Per Minute)
Stroke length	10 inches (254mm)
Gear ratio	4.207:1
Maximum work stress	5000 PSI (34.5 MPa)
Valve box dimensions	API # 6
Suction nozzle	12-INCH (305mm) flange
Discharge nozzle	51/8 inch API 5000 PSI flange
Overall dimensions (length x width x height)	163"X 89" x 70"(4267 x 3167 x 2580mm)
Approximate weight	41,420 lbs (18,790 kg)

Features of Massarenti Mud Pumps

Cooling and Lubricating

During drilling, the drill bit generates significant heat. Mud pumps circulate fluid to cool the bit and provide lubrication, reducing wear and tear.

Cleaning the Wellbore and Carrying Cuttings

As the drill bit cuts through rock, mud pumps help transport the debris (cuttings) to the surface, preventing buildup in the wellbore and ensuring smooth drilling.

Controlling Wellbore Pressure

Mud pumps play a crucial role in regulating the pressure within the well. By circulating drilling fluid, they help prevent dangerous blowouts and ensure the integrity of the well.

Preventing Wellbore Collapse

Drilling fluid helps stabilize the walls of the well, preventing the risk of collapse caused by high-pressure water or other factors.

Applications of Massarenti Mud Pumps

Oil and Gas Industry

They play a vital role in the extraction processes by ensuring a continuous supply of mud, which cools the drill bit and carries rock cuttings to the surface.

Geothermal Drilling

In geothermal projects, plunger pumps are used to manage the flow of fluids, crucial for effectively tapping into geothermal reservoirs.

Mining Operations

In the mining sector, these pumps assist in dewatering and slurry transport, which are essential for safe and efficient operations.

Operating Precautions for Massarenti Mud Pumps

Check before starting: All connections should be tight, the direction of electric rotation should be correct; the clutch should be flexible and reliable; the pipeline should be connected firmly, sealed reliably, and the bottom valve should be flexible and effective.

Before starting the submerged mud pump, the suction pipe, bottom valve and pump body must be filled with water, and the top of the pressure gauge buffer should be filled with oil.

Use your hand to move the piston back and forth twice. If there is no obstruction and the insulation of the circuit is good, you can start with no load. After starting, gradually increase the load when the operation is normal.

During operation, pay attention to the sealing status of various sealing devices and adjust them if necessary. The pull rod and the auxiliary rod should be lubricated frequently.

During operation, the mud content must not exceed 10% and should be tested frequently.

For mud pumps with several speeds, to ensure reliable splash lubrication, run each speed separately for each shift, and the time should not be less than 30 seconds.

Changing the speed during operation is strictly prohibited. If speed adjustment is required, the pump should be stopped and the shift changed.

Ordering Process

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

Packaging and Shipping

Packaging	Standard export plywood case or carton.
Shipping	DHL, TNT, UPS, FEDEX, and EMS, SF. Air and sea transportation are also supported.

Our Factory

Shijiazhuang Dong Li Petroleum Machinery Co., Ltd. (DLSY) was founded in 2008 and is headquartered in Shijiazhuang, Hebei Province, China.


Our Certificates

FAQ

Q: What is the lifespan of a mud pump?

A: The lifespan of a mud pump depends on maintenance and usage. With proper care, you can expect it to last 5–10 years. Regular inspections and timely replacement of worn parts extend its durability.

Q: How do you maintain a mud pump?

A: You maintain a mud pump by inspecting pistons, liners, and valves regularly. Replace worn components and lubricate moving parts. Monitor pressure and flow rates to detect issues early. Proper maintenance reduces downtime and extends the pump’s life.

Q: Can mud pumps handle abrasive fluids?

A: Yes, mud pumps are designed to handle abrasive fluids like drilling mud. Their liners and pistons use wear-resistant materials. However, frequent inspections ensure that abrasive materials don’t cause excessive damage.

Q: What is the difference between triplex and duplex mud pumps?

A: Triplex pumps have three cylinders with single-action strokes, offering compact design and efficiency. Duplex pumps have two cylinders with double-action strokes, providing higher flow rates but larger size. Choose based on your project’s needs.

Q: Are mud pumps used in renewable energy projects?

A: Yes, mud pumps play a key role in geothermal energy drilling. They circulate fluid to cool the drill bit and stabilize the wellbore. Their ability to handle high-pressure environments makes them essential for renewable energy applications.

Shijiazhuang Dongli Petroleum Machinery Co., Ltd. is one of the most professional massarenti mud pumps manufacturers and suppliers in China, featured by quality products and low price. Please rest assured to buy CE approved massarenti mud pumps made in China here from our factory. Contact us for quotation.
