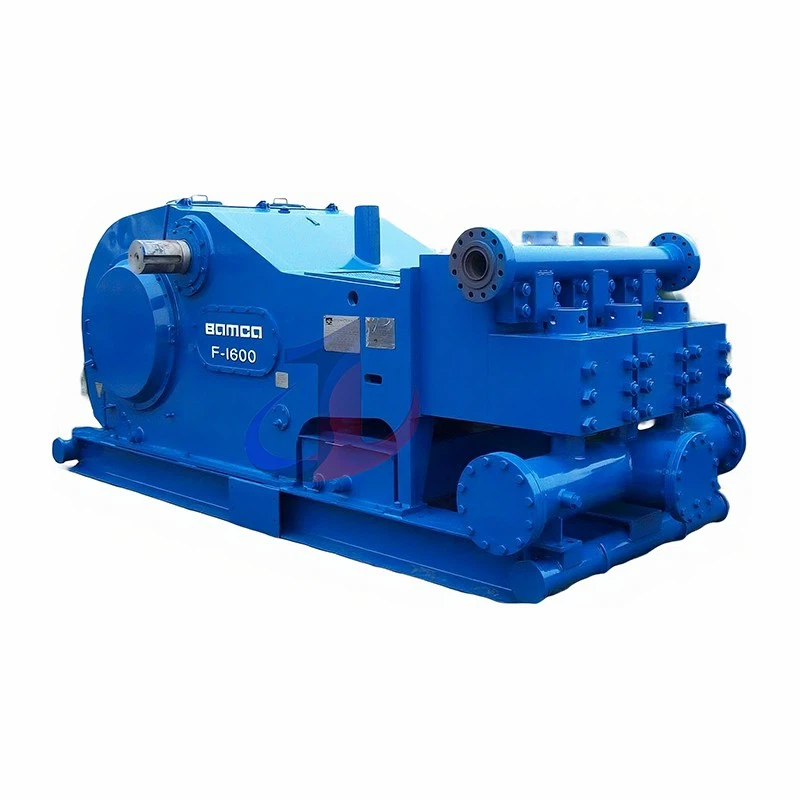

BOMCO F-1600 Mud Pump

The Bomco F-1600 mud pump is a horizontal triplex single-acting piston pump with a rated input power of up to 1600 horsepower (1193 kilowatts). Its design aims to provide powerful impetus for the drilling fluid circulation system, ensuring that drilling fluid can effectively clean the well bottom, carry cuttings, cool and lubricate the drill bit, and provide support for the wellbore. This pump model is primarily suitable for drilling rigs with depths ranging from 4500 meters to 8000 meters.

The F-1600's long-stroke design (12 inches/305 mm) combined with a rated speed of 120 strokes per minute (SPM) helps improve the pump's suction performance at lower speeds and significantly extends the service life of fluid end wear parts. This design balances the demand for high displacement with equipment durability, which is key to maintaining efficient operations in deep and complex well conditions.

Table 1: Bomco F-1600 Mud Pump Key Technical Specifications

This pump is strictly designed and manufactured in accordance with American Petroleum Institute API 7K standards, ensuring its global versatility and interchangeability of parts. Quality system certifications such as ISO 9001 further demonstrate its excellent manufacturing processes and quality control levels.

Power End: Robust Drive System Built for Continuous High-Energy Output

The power end of the Bomco F-1600 mud pump is the source of its surging power. Its design core lies in efficiently and reliably converting input mechanical energy into the reciprocating motion of the fluid end. Each component is meticulously selected and precisely manufactured to ensure excellent performance during prolonged, high-load drilling operations.

Frame Structure

The power end frame is welded from high-strength steel plates and undergoes overall stress-relief heat treatment after welding. This provides the frame with extremely high strength, rigidity, and a relatively light weight. This robust structure is the foundation for maintaining precise alignment of internal transmission components, reducing vibrations, and extending service life. The frame's internal design includes integrated oil sumps and necessary oil passages for lubricating and cooling the transmission components.

Crankshaft and Pinion Shaft

The crankshafts of Bomco F-1600 and its compatible models are typically cast from high-quality alloy steel. The crankshaft is designed as an eccentric type and undergoes dynamic balancing to ensure smooth operation.

Connecting Rod and Crosshead Assembly

The connecting rod is made of high-strength alloy steel, transmitting the rotational motion of the crankshaft to the crosshead. The crosshead body is precisely cast from ductile iron (nodular cast iron), possessing excellent wear resistance. The crosshead guide plate, which is the track for the crosshead's reciprocating motion, is typically manufactured from wear-resistant Meehanite cast iron (complying with ASTM A48-83 standard) to ensure long service life.

Performance Capabilities: Excellent Performance for Diverse Working Conditions

Table 2: Bomco F-1600 Mud Pump Performance Parameters

(Based on 100% volumetric efficiency and 90% mechanical efficiency)

Maximizing Uptime: High-Quality Wear Parts and Genuine Accessories

The reliable operation and longevity of the Bomco F-1600 mud pump depend not only on its robust overall design but also on high-quality wear parts and genuine accessories. These components directly withstand the abrasive and high-pressure impacts of drilling fluid, and their performance directly affects the pump's efficiency, maintenance cycle, and overall operating costs. We offer a full range of high-quality, API-compliant wear parts and accessories to ensure your F-1600 mud pump always maintains optimal working condition.

Liners

High-Chrome Bi-metal Liners: This is a commonly used liner type for F-1600 mud pumps. Their outer shell is made of high-strength forged steel (e.g., 45# steel), ensuring sufficient strength and toughness; the inner sleeve is made of high-chrome cast iron, formed by centrifugal casting, offering extremely high wear and corrosion resistance. The inner sleeve hardness typically reaches HRC 59-67.

Ceramic Liners (e.g., Zirconia Ceramic): For highly abrasive drilling fluids or conditions requiring extra-long service life, ceramic liners are recommended. Zirconia ceramic possesses extremely high hardness (e.g., Rockwell hardness 92-94 HRC), excellent wear resistance, and chemical stability, significantly extending service life, though the initial cost is relatively higher. High-pressure models like the F-1600HL may prioritize ceramic liners.

Chrome-Plated Liners: Integrally manufactured from high-strength forged steel, with the inner bore surface hard chrome-plated and polished. Hardness can reach approximately HRC 62, providing good wear resistance. All liners undergo precision machining and honing to ensure inner bore smoothness (e.g., zirconia ceramic liners can achieve 4-8 RMS) and dimensional accuracy, and feature special designs to prevent relative sliding between inner and outer sleeves.
Pistons & Piston Rods
Pistons:

Types:

Bonded Polyurethane Pistons: The piston rubber is made of highly wear-resistant polyurethane material, directly vulcanized and bonded to a forged alloy steel piston core (common materials include 42CrMo, 45# steel). Dual-hardness polyurethane designs can adapt to oil-based or water-based muds and withstand high pressure. Some special designs like "BullNose" or "FlexLip" help improve sealing effectiveness and reduce wear.

Bonded Rubber Pistons (NBR, HNBR): Utilize materials such as Nitrile Butadiene Rubber (NBR) or Hydrogenated Nitrile Butadiene Rubber (HNBR), bonded to a metal piston core, suitable for different mud systems and temperature conditions.

Replaceable Rubber Pistons: The piston rubber can be replaced independently, allowing the piston core to be reused, which can be economical in specific situations.

Piston Core/Hub Material: Typically made of high-strength forged alloy steel (e.g., 42CrMo or 45# steel), ensuring no deformation under high pressure and providing reliable support.

Piston Rods / Extension Rods (Pony Rods):

Material: Made from high-strength forged alloy steel, such as 35CrMo, 45# steel, or SAE 4140.

Manufacturing Process: Undergo forging, quenching and tempering heat treatment, and precision grinding to ensure dimensional accuracy and mechanical strength.

Surface Treatment: The surface is typically hard chrome plated, nickel plated, or treated with other special wear-resistant and corrosion-resistant coatings to enhance its service life in harsh environments.

Connection Method: Connected to the crosshead extension rod or piston via clamps, facilitating quick assembly and disassembly.

Valves, Seats & Inserts

Valve and Valve Seat: Use API #7 full-open valve assemblies. The material is high-quality forged alloy steel (e.g., 20CrMnTi), which undergoes carburizing and quenching treatment, resulting in a surface hardness greater than HRC60, providing extremely high wear and impact resistance.

Valve Rubber (Valve Insert): Standard configuration is polyurethane material, with options for high-temperature polyurethane or special rubbers to adapt to different mud properties and temperature requirements.

Seals & Gaskets

Material: Made from high-quality Nitrile Butadiene Rubber (NBR), Hydrogenated Nitrile Butadiene Rubber (HNBR), or Polyurethane (PU) materials, ensuring chemical compatibility with various drilling fluids and sealing performance at different temperatures.

Types: Include liner seals, valve cover seals, piston rod packing, O-rings, and gaskets at various connection points.

Ancillary Equipment

Pulsation Dampener: KB-75 type or equivalent performance product, equipped with a bladder, charging valve, and pressure gauge.

Shear Pin Safety Valve: JA-3 type.

Liner Spray System: Consists of a spray pump (belt-driven or independently motor-driven), a water tank, and spray lines/nozzles, used for cooling and lubricating the liners and pistons.

Discharge Strainer Assembly.

Suction Air Chamber/Pulsation Dampener.

Jib Crane: Equipped with a manual hoist, used to assist in replacing large fluid end components, reducing maintenance labor intensity.

Table 3: F-1600 Key Wear Parts and Material Options

We understand that high-quality wear parts are crucial for ensuring the long-term efficient operation of mud pumps and reducing Non-Productive Time (NPT). Therefore, we insist on providing genuine accessories that meet or even exceed OEM standards. Simultaneously, we also provide detailed "Bomco F-1600 Mud Pump Parts Manual" and "Operation and Maintenance Manual" to guide users accurately in daily maintenance and spare parts ordering. Choosing our genuine accessories means opting for longer Mean Time Between Failures (MTBF) and lower Total Cost of Ownership (TCO).

Field Proven: Wide Applications and Market Leading Position

The Bomco F-1600 Triplex Mud Pump has gained widespread acclaim and market recognition in the global oil and gas drilling sector due to its excellent design and reliable performance. It is not just a pump; it is an indispensable "heart" in drilling operations, providing continuous and stable power support for various complex and demanding drilling environments.

Typical Drilling Applications

The versatility and powerful performance of the F-1600 mud pump enable it to handle various drilling tasks:

Onshore and Offshore Drilling:

Its robust structure and reliability make it equally suitable for onshore fixed drilling rigs and offshore drilling platforms.

Medium-Deep to Deep Well Operations:

The F-1600 is primarily paired with drilling rigs ranging from 4500 meters to 8000 meters in drilling depth. This is its core application range, covering the drilling needs of most oil and gas wells globally.

High-Power Rig Matching:

As a 1600-horsepower mud pump, it is typically used with rigs of Rig 45 to Rig 80 classes (numbers usually represent nominal drilling depth, e.g., Rig 45 corresponds to 4500 meters).

High-Pressure, High-Displacement Requirements:

Whether it requires high displacement for rapid top-hole drilling or high pressure to overcome deep, complex formations, the F-1600 can meet the demands by changing liners and adjusting stroke speeds.

Special Well Condition Operations:

Its derivative models, such as the F-1600HL, with a higher pressure limit (up to 7500 psi), are particularly suitable for cluster wells, extended reach wells, horizontal wells, and high-pressure jet drilling, as well as other modern drilling processes with higher mud pump performance requirements.

Your Excellent Partner in Drilling Performance: Why Choose Our Bomco F-1600

In the demanding field of oil and gas drilling, choosing the right equipment means achieving the optimal balance between efficiency, reliability, and operating costs. Our Bomco F-1600 Triplex Mud Pump is precisely an excellent solution meticulously crafted to meet these core needs.

By choosing our F-1600, you will gain:

Unparalleled Durability:

Our F-1600 uses the highest quality materials (for example, we equip the standard F-1600 with high-strength alloy steel cast crankshafts and offer optional forged 42CrMo alloy steel crankshafts for extreme conditions; the frame is welded from thick steel plates and undergoes strict stress-relief treatment; fluid end modules are precision-machined from integral forged high-quality alloy steel like 35CrMoA or 4135 steel), combined with world-class precision manufacturing processes, ensuring every component can withstand the harshest operating environments and prolonged continuous operation.

API 7K Certified Excellent Performance:

Every F-1600 mud pump is strictly designed and manufactured in accordance with API 7K standards. This is not only a guarantee of its safety and reliability but also means its components have high interchangeability globally, greatly facilitating your maintenance and spare parts management and reducing operational complexity.

Broad Adaptability to Working Conditions:

With its wide range of pressure and displacement adjustment (achieved by changing liners and adjusting stroke speeds), the F-1600 can flexibly handle various complex drilling conditions and geological structures, from fast surface drilling to deep high-pressure drilling, making it your ideal choice for diverse challenges.

Optimized Wear Part Life:

We understand that the performance of wear parts is crucial to the overall performance of mud pumps. Therefore, we offer a full range of high-quality wear parts, including high-chrome bi-metal liners, ultra-wear-resistant ceramic liners, high-performance bonded polyurethane/rubber pistons, and carbide valve assemblies. These components are manufactured using top-grade materials and advanced processes, aiming to maximize service life and reduce replacement frequency, thereby lowering your Non-Productive Time (NPT).

Comprehensive Technical Support and Service:

We not only provide high-quality equipment but also strive to be your long-term partner. You can obtain detailed genuine parts catalogs and operation and maintenance manuals, as well as professional technical consultation, on-site guidance, and rapid spare parts supply from our global service network and expert team.
