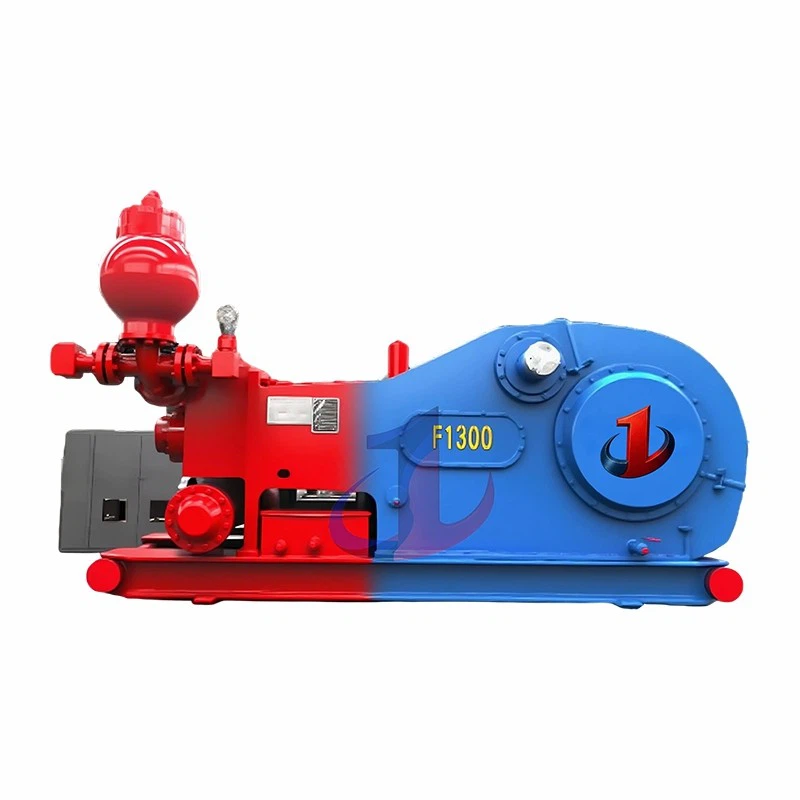

BOMCO F-1300 Mud Pump

The Bomco F-1300 mud pump is a horizontal triplex single-acting piston pump, designed and manufactured specifically to meet the technical demands for high pumping pressure and large displacement in oil drilling operations. Its robust and compact structure, smaller volume, and excellent operating performance make it a preferred supporting equipment for medium-deep to deep well drilling rigs, especially suitable for drilling depths between 3200 meters and 4500 meters.

The F-1300 mud pump features a longer stroke and lower strokes per minute, effectively improving the pump's suction performance and significantly extending the service life of fluid end wear parts. Its maximum working pressure can reach 34.5 MPa (5000 psi), and with a 180 mm liner, the displacement can reach 46.5 L/s.

Table 1: Bomco F-1300 Main Technical Specifications

Table 2: Bomco F-1300 Mud Pump Performance Parameters

The F-1300 mud pump's power end is designed robustly, with excellent material selection and strict manufacturing processes, ensuring the pump's long-term stable operation.

Frame Structure:

Constructed from high-strength steel plates, offering high strength, high rigidity, and lightweight characteristics.

Undergoes stress-relief heat treatment (annealing) after welding, enhancing the frame's structural stability and fatigue resistance. This is crucial for equipment operating under continuous heavy loads, effectively preventing early cracking and deformation.

Crankshaft Assembly:

Material: Made from high-strength forged or cast alloy steel. Common F-series pumps or high-performance pumps may use alloy steels like 42CrMo or 4340.

Manufacturing Process: Undergoes precision machining and heat treatment to achieve optimal strength and toughness. Dynamic balancing is also performed to ensure smooth, vibration-free operation, thereby extending the service life of bearings and related components.

Gear System:

Type: Employs integral or split herringbone gear transmission, which offers large torque transmission, smooth operation, and low noise. Herringbone gears provide smoother, quieter operation and higher load capacity compared to spur gears.

Material: The pinion shaft is made of forged alloy steel with medium-hardened teeth. The bull gear is also typically made of alloy steel, ensuring high wear resistance and long service life.

Crosshead Assembly:

Material: Integral crossheads are typically cast from high-quality ductile iron or cast steel, offering excellent wear resistance.

Guide Plates: Feature replaceable guide plates, usually made of high-quality manganese bronze or equivalent bearing materials, to achieve low friction and long service life. Concentricity can be adjusted using shims.

Lubrication System:

Type: Combines forced lubrication with splash lubrication to comprehensively lubricate all critical moving parts.

Components: Includes a built-in gear oil pump, oil circulation system, and pressure gauge for monitoring oil pressure.

The F-1300 mud pump's fluid end is precision-designed with strict material selection to ensure reliable operation in harsh conditions involving high pressure, corrosion, and abrasion.

Design and Structure:

Type: F-series pumps typically adopt a Valve-over-Valve structure, a common and mature design in F-series pumps that effectively improves volumetric efficiency and makes the structure more compact. Some sources also mention the F-1300 having an optional L-type fluid end.

Modules (Fluid Cylinders): Three independent fluid cylinders are integrally forged from high-strength alloy steel (e.g., 35CrMo, 40CrMnMo, AISI 4130/4135, AISI 8620).

Manufacturing Process: Undergo strict heat treatment, offering excellent durability and high-pressure bearing capacity. The inner surface can be chemically nickel-plated as required to enhance corrosion resistance. Fluid end components comply with API 7K standards, ensuring good interchangeability.

Valve Covers: Employ a safe and reliable fastening method, typically threaded valve covers, ensuring reliable sealing under high pressure and facilitating maintenance operations.

Valve Assembly (API 7#):

Type: Features a full-open valve design for optimal fluid flow efficiency.

Valve Body and Seat: Forged from high-quality alloy steel (e.g., 20CrMnTi or AISI 8620 / 20CrNiMo) and undergo carburizing and quenching treatment, with a surface hardness of over HRC60, providing excellent wear resistance. The conical sealing surfaces are precision-ground to ensure sealing performance.

Valve Rubber (Valve Insert): Uses high-performance polyurethane material, offering excellent wear, extrusion, and chemical corrosion resistance; durable nitrile rubber (NBR) material can also be selected to adapt to different drilling muds and temperature conditions. The multiple manufacturing processes of the valve assembly (forging, carburizing, quenching, grinding) aim to create components capable of withstanding the extremely harsh, highly abrasive environment within the fluid end.

Liners:

Standard Configuration: High-Chrome Bi-metal Liners:

Outer Shell: Made of high-strength forged steel and heat-treated for optimal mechanical properties.

Inner Sleeve: Made of centrifugally cast high-chrome cast iron alloy (typically 26-28% chromium content), offering excellent wear, corrosion, and erosion resistance.

Manufacturing Process: Ensures uniform microstructure and high hardness (HRC 62-69) of the inner sleeve through precisely controlled heat treatment. The inner bore is precision-honed to meet API or superior tolerances, extending piston service life.

Design Feature: Features an "HP Lip Design" to prevent inner sleeve slippage under high-pressure conditions.

Service Life: Designed for a service life exceeding 800 hours.

Optional Configuration: Zirconia or Alumina Ceramic Liners:

Suitable for extremely abrasive conditions, significantly extending service life (up to 4000 hours or more).

The outer shell is typically forged steel, and the inner sleeve is made of zirconia or alumina ceramic material. The choice between bi-metal and ceramic liners allows customers to configure the pump based on specific mud abrasiveness and economic considerations. The HP lip design is a critical detail in high-pressure applications, effectively preventing the sliding of the liner's inner sleeve under high pressure, which is a common failure mode.
Piston:

Structure: Features a bonded design, ensuring maximum strength and resistance to extrusion.

Piston Core: Forged from high-strength 42CrMo alloy steel.

Piston Rubber: High-performance polyurethane material suitable for oil-based muds and high-temperature environments, or durable nitrile rubber (NBR) for water-based muds. Both materials offer excellent wear and chemical corrosion resistance.

Piston Rod and Pony Rod:

Material: Forged from high-strength alloy steel, typically SAE 4140 or 42CrMo.

Manufacturing Process: Undergo precision machining and heat treatment to improve strength and fatigue resistance. The rod surface is precision-ground and typically hard chrome plated (in some cases, galvanized or nickel-plated) for superior wear and corrosion resistance.

Connection: The piston rod and pony rod, as well as the piston rod and piston, are reliably connected, for example, via piston rod clamps, ensuring tightness and concentricity under high-pressure operating conditions.

Seals and Gaskets:

Material: Made from high-quality nitrile rubber (NBR), hydrogenated nitrile rubber (HNBR), or polyurethane (PU), selected based on specific application, temperature, and fluid compatibility to achieve optimal sealing performance.

The F-1300 mud pump is equipped with a series of standard accessories designed to enhance the pump's overall performance, operational safety, and extend its service life.

Pulsation Dampener:

Type: Standardly equipped with a KB-75 type (or equivalent performance) pulsation dampener.

Function: Effectively reduces discharge pressure fluctuations, ensuring smoother pump operation and protecting downstream equipment from pressure shocks.

Components: Typically includes a bladder, connection flange, pressure gauge, and nitrogen charging device.

Shear Pin Safety Valve:

Type: Standardly equipped with a JA-3 type shear pin safety valve (or equivalent performance).

Function: Provides reliable protection against system overpressure, preventing damage to the pump body and pipelines.

Liner and Piston Spray System:

Components: Includes a dedicated spray pump (typically centrifugal, belt-driven by the pinion shaft or independently motor-driven), a cooling water tank, and spray lines/nozzles.

Function: Cools and lubricates the liners and pistons, significantly extending their service life. The standard comprehensive liner spray system demonstrates the manufacturer's deep understanding of critical factors affecting wear part life and overall pump reliability. This system directly addresses wear and overheating, which are primary causes of premature liner and piston failure.
Other Standard Configurations: Suction and discharge manifolds, pressure gauges. Larger pump models may have an optional cantilever crane for convenient maintenance.

The Bomco F-1300 mud pump, with its excellent performance and reliable design, is widely used in various drilling operations.

Main Use:

Circulation of drilling fluid in oil and gas exploration and production processes.

Well Depth Range:

Particularly suitable for medium-deep and deep well drilling operations due to its powerful output and pressure capabilities.

Formation Adaptability:

Capable of handling complex formation conditions that require significant hydraulic pressure.

By choosing the Bomco F-1300 mud pump provided by our company, you will receive:

Consistent Quality: Strict adherence to API 7K and internal quality control standards for production and inspection.

Genuine Components and Professional Expertise: A deep understanding of the F-1300 design ensures the use of genuine OEM parts, providing optimal performance and reliability.

Exceptional Durability: Key components are made from high-quality materials (e.g., forged alloy steels like 42CrMo, 35CrMo, 20CrMnTi) and manufactured with precision processes (heat treatment, precision machining, stress relief).

Efficient Operation: The pump's design fully considers ease of maintenance, with ample spare parts supply and good interchangeability, minimizing downtime.

Long-Term Economic Value: Robust construction and high-quality wear parts mean a lower total cost of ownership.

Comprehensive Support: Provision of comprehensive after-sales service, technical support, and timely spare parts supply.
