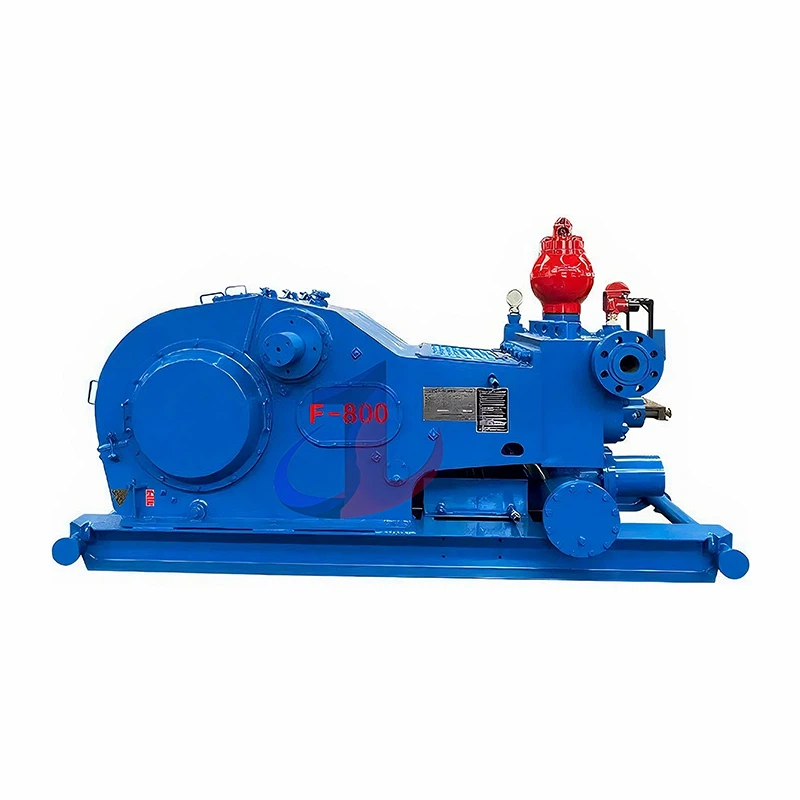

BOMCO F-800 Mud Pump

Key Features and Advantages: Why the Bomco F-800 is the Industry's Preferred Choice

Choosing the Bomco F-800 mud pump means opting for superior performance and long-term operational value. Its key features and the resulting customer benefits include:

Unwavering Reliability

The F-800 mud pump boasts a robust and compact structural design, ensuring its continuously reliable operation in various complex drilling environments, both onshore and offshore.

Extended Component Life, Reduced Operating Costs:

F-series pumps typically feature a longer stroke design, coupled with an optimized lubrication system, which significantly extends the service life of critical wear parts, thereby effectively reducing maintenance frequency and operating costs

Simplified Maintenance, Increased Efficiency:

The pump's components strictly adhere to API standards, ensuring excellent interchangeability, which greatly facilitates global procurement and replacement of spare parts. Its independent fluid end structure also makes inspection and repair more convenient and efficient.

Superior Suction Performance:

The F-800 mud pump is equipped with an advanced suction pulsation dampener (suction air chamber), offering reliable performance that effectively optimizes the pump's suction conditions, ensuring efficient and smooth fluid intake.

The F-800 mud pump's power end is meticulously designed and precision-manufactured to provide stable and sustained power output for the entire pump system.

A. Frame Assembly: The Foundation of Stability

The F-800 power end's frame is constructed from high-strength steel plates and undergoes critical stress-relief heat treatment after welding to ensure its exceptional rigidity, structural integrity, and long-term resistance to fatigue and vibration.

B. Crankshaft Assembly: Precision Forged, Durable

The F-800 mud pump's crankshaft is forged from high-quality alloy steel (35CrMo, 40CrMnMo, or modified 4340 steel), chosen for its excellent strength and fatigue resistance. The forging process imparts superior metal grain flow and structural density to the crankshaft, far surpassing cast components. Subsequently, the crankshaft undergoes meticulous heat treatment and dynamic balancing to ensure smooth, vibration-free operation at high speeds. This not only extends the crankshaft's own service life but also significantly enhances the durability of related bearings and components, guaranteeing the pump's continuous reliable operation under heavy loads.

C. Gear System: Efficient and Stable Power Transmission

The F-800 mud pump power end employs a robust herringbone gear drive system, a design renowned for its high torque carrying capacity, smooth operation, and low noise characteristics. The pinion shaft is forged from alloy steel, with precisely machined teeth of medium hardness to achieve optimal wear resistance and service life.

D. Bearing Configuration: Designed for Heavy-Duty Conditions

To ensure reliable operation under demanding drilling loads, the F-800 power end is equipped with high-quality, heavy-duty roller bearings at critical points:

Crankshaft Main Bearings: Typically robust self-aligning roller bearings (e.g., double-row spherical roller bearings), capable of accommodating potential shaft deflection and ensuring stable operation.

Pinion Shaft Bearings: Utilize precision single-row radial long cylindrical roller bearings or double-row spherical roller bearings to ensure reliable support and efficient power transmission.

Connecting Rod Big End Bearings (Eccentric Bearings): Employ single-row short cylindrical roller bearings to withstand high-cycle impact loads.

Connecting Rod Small End Bearings (Crosshead Pin Bearings): Utilize double-row long cylindrical roller bearings to handle high cyclic loads.

Crosshead Bearings: Use durable double-row long cylindrical roller bearings, precisely guiding the crosshead's linear reciprocating motion.

E. Crosshead Assembly: Precision and Wear Resistance
The F-800 mud pump's crosshead is manufactured using an integral casting process, selecting high-quality ductile iron or cast steel materials, which offers excellent wear resistance. The crosshead wear plate (guide plate) is typically made from wear-resistant manganese bronze, forming an ideal low-friction sliding pair with the crosshead.
F. Lubrication System: Ensuring Continuous Operation
The F-800 power end is equipped with a comprehensive lubrication system, typically combining forced lubrication with splash lubrication, to ensure all critical moving parts receive adequate lubrication and effective cooling.
Keywords: F-800 power end, mud pump crankshaft, herringbone gear, mud pump lubrication system, API 7K power end components, mud pump frame, mud pump bearings, mud pump crosshead

The F-800 mud pump's fluid end is the core component for high-pressure pumping tasks, and its design and manufacturing aim to withstand extreme conditions and guarantee maximum efficiency.

A. Fluid End Modules (Fluid Cylinders)

The F-800 mud pump is equipped with three interchangeable, independent forged fluid cylinder modules. These modules are precision forged from high-strength alloy steel (such as AISI 4135, i.e., 35CrMo, or AISI 8620, i.e., 20CrNiMo). The forging process ensures the material's density and excellent mechanical properties. Subsequently, through heat treatment and internal hardening processes, the modules' durability and high-pressure resistance are further enhanced, enabling them to withstand the standard F-800 pump's operating pressure of up to 5000 psi. Its valve box employs a typical Valve-over-Valve structural design, which helps optimize fluid passages and improve the pump's volumetric efficiency.

B. Valve Assembly: Precision, Durability, and Reliable Sealing

The F-800 mud pump is fitted with API #6 valve assemblies. Both the valve body and valve seat are made of high-quality forged alloy steel (such as 20CrMnTi, AISI 8620, or 40CrNiMo) and are precision die-forged as a single unit. These components undergo specialized heat treatment processes, including carburizing and quenching, to achieve a surface hardness of over HRC 60, thus possessing excellent wear resistance capable of effectively resisting the abrasion from solid particles in drilling fluid.

C. Liners: Exceptional Wear Resistance, Extended Life

The F-800 mud pump comes standard with high-performance bi-metal liners, renowned for their excellent wear and corrosion resistance. The outer shell of these liners is made of high-strength forged carbon steel (such as Grade 45 steel or ZG45 steel) and is heat-treated to achieve optimal mechanical properties. The inner sleeve is made of high-chrome cast iron (chromium content typically 26-28%), formed by centrifugal casting to ensure dense and uniform microstructure, then heat-treated to achieve a very high hardness level of HRC 60-69 (usually greater than HRC 62).

D. Pistons and Piston Rods: Core Components for Power Transmission

Piston: The F-800 uses robust and durable composite pistons. The piston core is typically forged from high-strength alloy steel such as 42CrMo, Grade 45 steel, or 35CrMo. The piston rubber (cup) is made of high-performance polyurethane or special nitrile rubber materials.

Piston Rod: As a critical component connecting the power end and fluid end, the piston rod is forged from high-quality alloy steel (such as 42CrMo or SAE 4140).

E. Seals and Gaskets: Ensuring Leak-Free Operation
The F-800 mud pump employs high-performance seals and gaskets at all critical sealing points. Commonly used materials include nitrile rubber (NBR), hydrogenated nitrile rubber (HNBR), and polyurethane (PU). These materials are selected based on their specific operating conditions in different locations (e.g., contact medium, temperature, pressure, dynamic or static sealing) to ensure reliable sealing, prevent leaks, and exhibit excellent durability in various drilling fluid environments (water-based, oil-based).

The Bomco F-800 mud pump comes standard with a series of key accessories designed to optimize pump performance, ensure operational safety, and extend the service life of core components. The integration of these accessories reflects our commitment to overall equipment reliability and user operational benefits.

Discharge Pulsation Dampener:

Each F-800 pump is standardly equipped with a robust discharge pulsation dampener (e.g., KB-45 type or equivalent for F-800, rated working pressure 5000 psi), whose main function is to effectively absorb and dampen pressure fluctuations in the pump's discharge line. This not only makes pump operation smoother, reducing impact on the manifold system and downstream equipment, but also helps improve drilling fluid flow continuity and optimize drilling efficiency.

Shear Pin Safety Valve:

As an important overpressure protection device, the F-800 pump integrates a JA-3 type shear pin safety valve (or functionally equivalent model, with a rated pressure range typically 1500-5000 psi). When the pump's discharge pressure exceeds the preset safe value, the shear pin within the safety valve breaks, rapidly releasing pressure, thereby protecting the pump body, manifold, and related equipment from overpressure damage and preventing potential major equipment accidents and personnel injuries.

Liner Spray System:

To extend the service life of high-wear components like liners and pistons, the F-800 pump comes standard with a dedicated liner spray (wash) system. This system typically consists of an independent spray pump (which can be driven by a pinion shaft belt or an independent motor), a cooling fluid tank, piping, and nozzles, continuously spraying cooling lubricant onto the liner and piston surfaces.

Bomco F-800 Mud Pump: Technical Specifications at a Glance

The theoretical displacement calculation formula for a triplex single-acting pump is: Q=0.000243×D2×L×SPM×ηv​, where D is the liner inner diameter in inches, L is the stroke length in inches, SPM is the strokes per minute, and ηv​ is the volumetric efficiency, typically assumed to be 100% for theoretical calculations; actual displacement needs to consider mechanical efficiency, usually 90%, for specific application verification.

Optimize Hydraulic Parameters: Select the most appropriate liner size and pump speed combination to achieve desired displacement and annular return velocity within the pump's allowable pressure range, based on the needs for wellbore cleaning, cuttings transport, bit cooling, and wellbore stability.

Refine Drilling Program Design: Precisely match the pump's output capability to different well sections and geological conditions.

Verify Equipment Suitability: Confirm whether the F-800 pump can provide the hydraulic horsepower required for the drilling operation.

The Bomco F-800 mud pump, with its exceptional performance and robust design, is widely applied in various oil and gas drilling operations. As an important member of the F-series mud pumps, the F-800 is not only suitable for conventional onshore drilling but its reliability also enables it to handle challenging offshore drilling platform operations.

The pump is primarily used for circulating drilling fluid, with functions including:

Cooling and lubricating the drill bit

Bringing cuttings from the well bottom to the surface

Maintaining wellbore stability

Delivering the hydraulic power required by downhole power tools

The F-800 mud pump is capable of meeting the drilling needs of medium-deep wells, and its high displacement and high-pressure capabilities make it an ideal choice for these operations. Additionally, the versatility and strong adaptability of the F-series pumps also allow them to be used in other related fields such as workover operations, providing customers with broad application flexibility and return on investment.

We understand the importance of quality and compliance for drilling operation safety and efficiency. Every Bomco F-800 mud pump and all its components are strictly designed, manufactured, and tested in accordance with the internationally recognized API Spec 7K standard. This ensures that our products not only meet industry-leading performance levels but also provide customers with solid guarantees in terms of safety and reliability.

At the same time, our production facilities are typically also certified by ISO 9001 quality management systems, which signifies that we follow rigorous quality management processes in every aspect, from raw material procurement and production process control to final product inspection.

All wear parts of the F-800 mud pump are designed to be interchangeable with equivalent pump accessories that comply with API standards. This feature greatly simplifies customers' spare parts inventory management and global maintenance work, reduces operating costs, and ensures that equipment can quickly resume operations when repairs are needed.

Ordering Information and Support

We are committed to providing high-quality Bomco F-800 mud pumps and their full range of genuine OEM accessories and professional technical support services to global customers.

Spare Parts and After-Sales Service:

We have a comprehensive spare parts supply system, ensuring you can timely obtain all original wear parts and critical components required for the F-800 mud pump, including but not limited to fluid end modules, liners, pistons, piston rods, valve assemblies, seals, gears, bearings, and various standard accessories. Our professional team is always ready to provide you with technical support and after-sales service to ensure your equipment continues to operate efficiently.
