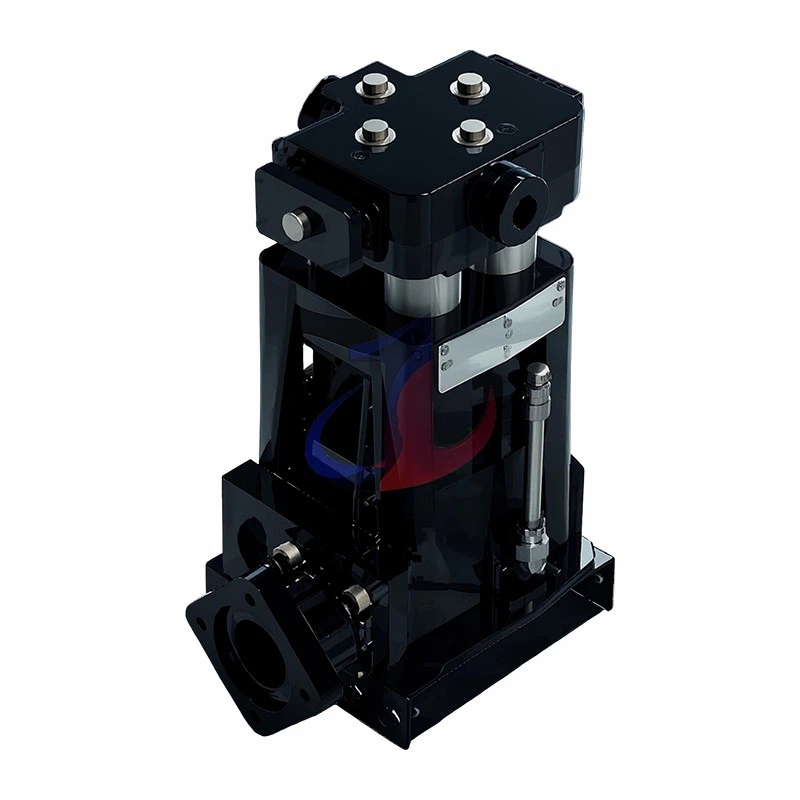

DL0411 Series Quadruplex Piston Pump

The DL0411 Series Quadruplex Piston Pump, a new benchmark in pumping technology, embodies the essence of time-tested classic design combined with innovative breakthroughs in modern engineering. This pump series is specifically built to meet the most stringent continuous duty demands, striving to provide unparalleled reliability, exceptional performance, and extended service life in various challenging industrial applications.

DL0411 Detailed Technical Specifications

Characteristic Parameter (Specification)	Value
Pump Model	DL0411
Pump Type	Vertical Quadruplex Single-Acting Piston Pump
Number of Pistons	4
Piston Diameter	1.375 inches (34.925 mm)
Stroke Length	1.0 inch (25.4 mm)
Displacement per Revolution	0.0257 Gallons/Revolution (GAL/REV)
Maximum Working Pressure	800 PSI (approx. 55 Bar / 5.5 MPa)
Pump Speed - Min/Cont./Int.	390 / 450 / 575 RPM
Rated Flow @ RPM	10.03 GPM (38.0 LPM) @ 390 RPM 10.28 GPM (38.9 LPM) @ 400 RPM 10.93 GPM (41.4 LPM) @ 425 RPM 11.57 GPM (43.8 LPM) @ 450 RPM (Continuous) 14.78 GPM (56.0 LPM) @ 575 RPM (Intermittent)
Power - Cont./Int.	6.7 BHP (approx. 5.0 kW) / 8.5 BHP (approx. 6.3 kW)
Fluid End Standard Material	Cast Iron
Fluid End Optional Material	Aluminum Bronze
Valve Type	Disc Valves
Suction Inlet Size/Type	1.25 Inch NPT
Discharge Outlet Size/Type	0.75 Inch NPT
Lubrication System	Splash, Gravity Return
Lube Oil Type/Capacity	SAE 30 / 1 Quart (approx. 0.95 liters)
Mechanical Efficiency	Approx. 85%
Pump Average Weight	80 lbs (approx. 36.3 kg)
Frame Load Rating	1,240 lbs (approx. 562 kg)
Direction of Rotation	Either
Internal Gear Ratio	1:1
Hydraulic Motor Mount	SAE A - 2 Bolt with 1"-6B Spline Shaft
Max/Min Fluid Temp.	Standard 140°F (60°C) [Up to 250°F (121°C) capability] / Standard 0°F (-18°C) [Up to -20°F (-29°C) capability]
Reference Drawing	P515133 Drawing. Contact us for detailed outline dimensions.

DL0411 Components: Selected Materials and Precision Craftsmanship for Exceptional Durability

The DL0411 series plunger pump's exceptional performance and extended service life stem not only from its overall advanced design but also from the superior materials and precision manufacturing processes of each core component. We understand that in demanding industrial environments, the quality of components directly determines the pump's reliability and maintenance cycle.

A. Fluid End Core Components

The fluid end is the part of the pump that directly contacts the working medium and generates pressure, making the durability of its components crucial.

Cylinders/Liners: The DL0411 pump utilizes super-finished ceramic liners. Ceramic material is renowned for its exceptional hardness, outstanding wear resistance, and excellent corrosion resistance, making it particularly suitable for handling fluids containing abrasive particles or those with certain corrosive properties.

Piston Cups: For abrasive conditions, the DL0411 is standardly equipped with HSN (Highly Saturated Nitrile Rubber) piston cups (part number P500515). HSN material offers excellent wear resistance, oil resistance, and good mechanical strength, effectively resisting the erosion of abrasive particles in the fluid, ensuring sealing performance and service life under harsh conditions.

Valve Assemblies - Disc Type: The DL0411 employs a highly efficient and reliable disc valve system.

Valve Seats: The valve seats (part number 1219615) are precisely machined from 440 Stainless Steel (440 SST). 440 SST, with its high hardness, excellent wear resistance, and certain corrosion resistance, ensures that the valve seat is not easily deformed or damaged during long-term, high-frequency opening and closing, guaranteeing the valve's sealing performance.

Disc and Spring Assemblies: The disc and spring assemblies (equivalent to part number 3266811) are also manufactured from 440 Stainless Steel (440 SST). This ensures the strength and wear resistance of the valve disc under high differential pressure, while the spring provides precise and reliable return force, ensuring rapid valve response and reducing leakage.

Valve Cages: Valve cages (part number 1219610) are typically made of stainless steel, providing stable support for the valve disc and spring assembly, and forming reasonable fluid passages to optimize hydraulic performance.

Seals:

Cylinder Ring Seal: The seal between the cylinder and valve chamber is ensured by a high-quality engineering material cylinder ring seal (part number 1285170), designed to provide reliable sealing under high pressure, prevent internal leakage, and maintain the pump's volumetric efficiency.

O-Rings: At critical sealing points such as valve seats and valve covers, the DL0411 uses high-quality Buna-N (Nitrile Rubber) O-rings (part numbers 3264075 and 1177841, explicitly stated as Buna-N material in P515133 drawing). Nitrile rubber offers excellent oil resistance, wear resistance, and good elasticity, providing reliable static and dynamic sealing over a wide temperature range.

B. Power End Key Components

The power end is responsible for converting input power into the reciprocating motion of the plungers, and the strength, wear resistance, and smooth operation of its components are crucial to the pump's overall performance.

Crankshaft: The DL0411's crankshaft undergoes a nitriding treatment process. Nitriding significantly enhances the crankshaft surface's hardness, wear resistance, and fatigue strength, allowing it to withstand long-term high-load operation, effectively extending the crankshaft's service life. This is one of the key measures to ensure the pump can handle continuous heavy-duty applications.

Connecting Rods: Made from high-strength and lightweight aluminum alloy, and equipped with wear-resistant pin bushings and split insert bearings. The aluminum alloy material helps reduce the inertial mass of reciprocating parts, thereby lowering vibrations during operation and reducing impact loads on crankshaft bearings, making the pump run more smoothly.

Pump Casing: The power end's pump casing is made from robust cast iron material. Cast iron offers excellent structural rigidity, vibration damping properties, and wear resistance, providing a stable and reliable operating foundation for internal precision components such as the crankshaft and bearings, and effectively suppressing vibrations and noise.

Bearings: Heavy-duty, oversized, high-quality ball bearings are selected. These bearings can withstand significant radial and axial loads, ensuring smooth and efficient power transmission, and have a long service life, serving as crucial support for the pump's long-term reliable operation.

C. Manufacturing and Quality Assurance

The exceptional quality of the DL0411 series plunger pump stems from our stringent control over manufacturing processes and quality control.

Adherence to International Standards: Our manufacturing process strictly adheres to ISO 9001 quality management system standards. This means that every stage, from raw material procurement, component processing, and assembly to final testing, is subjected to rigorous quality monitoring, ensuring that every DL0411 pump leaving the factory meets the highest quality requirements.

Comprehensive Factory Testing: Every DL0411 pump must undergo comprehensive performance testing before leaving the production line. Testing includes, but is not limited to, checking flow, pressure, power consumption, and mechanical operation under rated conditions, ensuring that all performance indicators meet design specifications and customer expectations.

DL0411 Multi-field Application Examples

The DL0411 series quadruplex piston pump, with its robust design, reliable performance, and adaptability to various fluids, is widely applied across various sectors of the national economy. Its powerful output and stable delivery make it an ideal choice for many demanding operating conditions.

Industrial Sector:

In general industrial applications, the DL0411 can be used for equipment cooling circulation, dust suppression and water drainage in mining operations, efficient feedwater for steam boilers, high-pressure cleaning of various equipment surfaces, descaling of pipes and containers, fixed or mobile fire protection systems, hydrostatic pressure testing of containers and pipelines, precision material cutting using high-pressure water jets, and conveying slurries containing certain solid particles.

Oil & Gas:

In the oil and gas extraction and processing industry, the DL0411 can perform various critical tasks, including oilfield water injection to enhance recovery, fluid injection in secondary oil recovery operations, glycol dehydration in natural gas processing, carbon dioxide injection for improving crude oil flowability or sequestration, amine solution circulation in natural gas desulfurization processes, precise injection of various chemicals, short-distance crude oil gathering and transportation, and providing hydraulic power for wellhead blowout preventer systems.

Drilling Operations:

The DL0411 pump (based on the E0411 design) performs exceptionally well in drilling applications, capable of handling mud circulation tasks involving abrasive particles like bentonite during directional drilling. Its robust fluid end components and wear-resistant design make it a reliable power source for various drilling applications such as vertical drilling, geological core drilling, water well drilling, geotechnical exploration, and environmental drilling, where products of the same series (BEAN piston pumps) have established a leading position in these markets.

Agricultural Applications:

In modern agricultural production, the DL0411 can be used to drive large agricultural spraying equipment for uniform spraying of pesticides, fertilizers, or liquid nutrients, ensuring effective crop protection and nourishment.

Municipal Services:

For urban infrastructure maintenance, the DL0411 can provide powerful impetus for municipal pipe dredging and high-pressure cleaning vehicles, effectively removing blockages and dirt from pipes and ensuring smooth operation of urban drainage systems.

Other Markets:

The applicability of the DL0411 also extends to reverse osmosis water treatment systems (as high-pressure feed pumps), fluid transfer in certain food processing workflows (compatibility with specific media needs to be confirmed), and chemical transfer in chemical processes.

Obtaining More Information and Support

We understand that choosing the most suitable pump for your specific application is paramount. The DL0411 series quadruplex piston pump, with its exceptional performance and reliability, is designed to be a powerful asset for your business success.

To help you gain a more comprehensive understanding of how the DL0411 can meet your needs, we sincerely invite you to contact our professional sales and technical support team. Whether you need a detailed product quotation, want to discuss customized configuration solutions for your unique operating conditions, or have any technical questions, our experts will be dedicated to serving you.
