GENERAL HF25A HDD Pump

The sealing system is the most critical wearable component in a high-pressure plunger pump, and its lifespan directly impacts equipment uptime. The HF25A features a proprietary low-pressure/high-pressure composite packing design, cleverly integrated with a cooling system. This is a core patented technology of General Pump and the Interpump Group.

● **Technical Advantage:** This system employs a multi-stage sealing structure. The low-pressure seal acts as the first line of defense, effectively blocking external contaminants from entering and protecting the core high-pressure seals. More importantly, the stuffing box integrates a fluid channel (i.e., the "cooling system") that allows the working medium or an external coolant to flow through, directly carrying away the significant frictional heat generated by the plunger's reciprocating motion and the high-pressure seals.

**High Volumetric Efficiency Spherical Valve Design**

The valve assembly in the fluid end is crucial for determining pump efficiency. The HF25A's inlet/outlet valves utilize an innovative "spherical sealing surface design," moving away from traditional conical or flat valve structures.

● **Technical Advantage:** Compared to a conical valve seat, spherical contact creates a more uniform and reliable line seal, effectively reducing internal leakage (slippage) under high pressure, thereby significantly improving the pump's volumetric efficiency. Simultaneously, the spherical valve passage offers a larger flow area and a smoother fluid path, minimizing fluid turbulence and pressure loss.

● **Operational Value:** Higher volumetric efficiency means the pump can deliver more fluid for the same energy consumption, directly translating to higher operational efficiency and lower energy costs.

This table consolidates the pump's key performance indicators, enabling users to quickly assess if it meets specific flow, pressure, and power requirements for their application.

This table provides all necessary physical dimensions and interface standards for equipment integration, serving as a key reference for mechanical design, piping layout, and powertrain configuration.

The power end is the core that converts mechanical energy into reciprocating motion, with every component designed to withstand continuous heavy loads.

● **Crankcase:** Manufactured from high-strength, lightweight alloy via die-casting. This material offers excellent structural rigidity, and its superior thermal conductivity helps rapidly dissipate internal operational heat, maintaining the lubricating oil at its optimal operating temperature.

● **Crankshaft:** Forged from high-grade alloy steel (42CrMo or 4140) as a single piece. Compared to casting, forging provides superior grain structure. After forging, the crankshaft undergoes multiple heat treatment processes including quenching, tempering, and nitriding. Nitriding creates an extremely hard compound layer on the journal surfaces, granting unparalleled wear resistance and ensuring precise fit with bearings during long-term operation.

● **Connecting Rods:** Made from a special anti-friction, lightweight alloy via forging, achieving an optimal balance of high strength and low weight. Lighter reciprocating components mean reduced inertial forces, effectively lowering pump vibration and noise, and decreasing eccentric loads on bearings, ultimately resulting in quieter operation and extended bearing life.

● **Bearings:** Tapered roller bearings are used to support the crankshaft. This bearing type is specifically designed to handle high combined radial and axial loads simultaneously, which is crucial for the constantly changing force conditions in a reciprocating pump, ensuring stable crankshaft operation.

● **Plunger Guide Bushings:** Made from cast iron and plated with nickel. This provides a wear-resistant, low-friction guiding surface for the plunger's reciprocating motion, ensuring smooth operation and long component life.

The fluid end directly contacts high-pressure, abrasive media; its materials and design are decisive factors for pump performance and lifespan.

● **Manifold:** Forged from 420 stainless steel as a single piece, ensuring material density and uniformity sufficient to withstand cyclic pressures up to 4060 PSI without fatigue risk. After forging, the manifold surface is nickel-plated. This, combined with the stainless steel base material, creates a dual anti-corrosion barrier, effectively resisting erosion from water, chemicals, and slurries.

● **Plungers:** Made from solid ceramic material. Ceramic plungers are a hallmark of top-tier high-pressure pumps. Their hardness far exceeds any metal, offering excellent wear resistance. Ceramic is also chemically inert, resisting virtually any chemical medium. Their precision-ground surface is extremely smooth, significantly reducing friction against the packing seals, thereby greatly extending seal life.

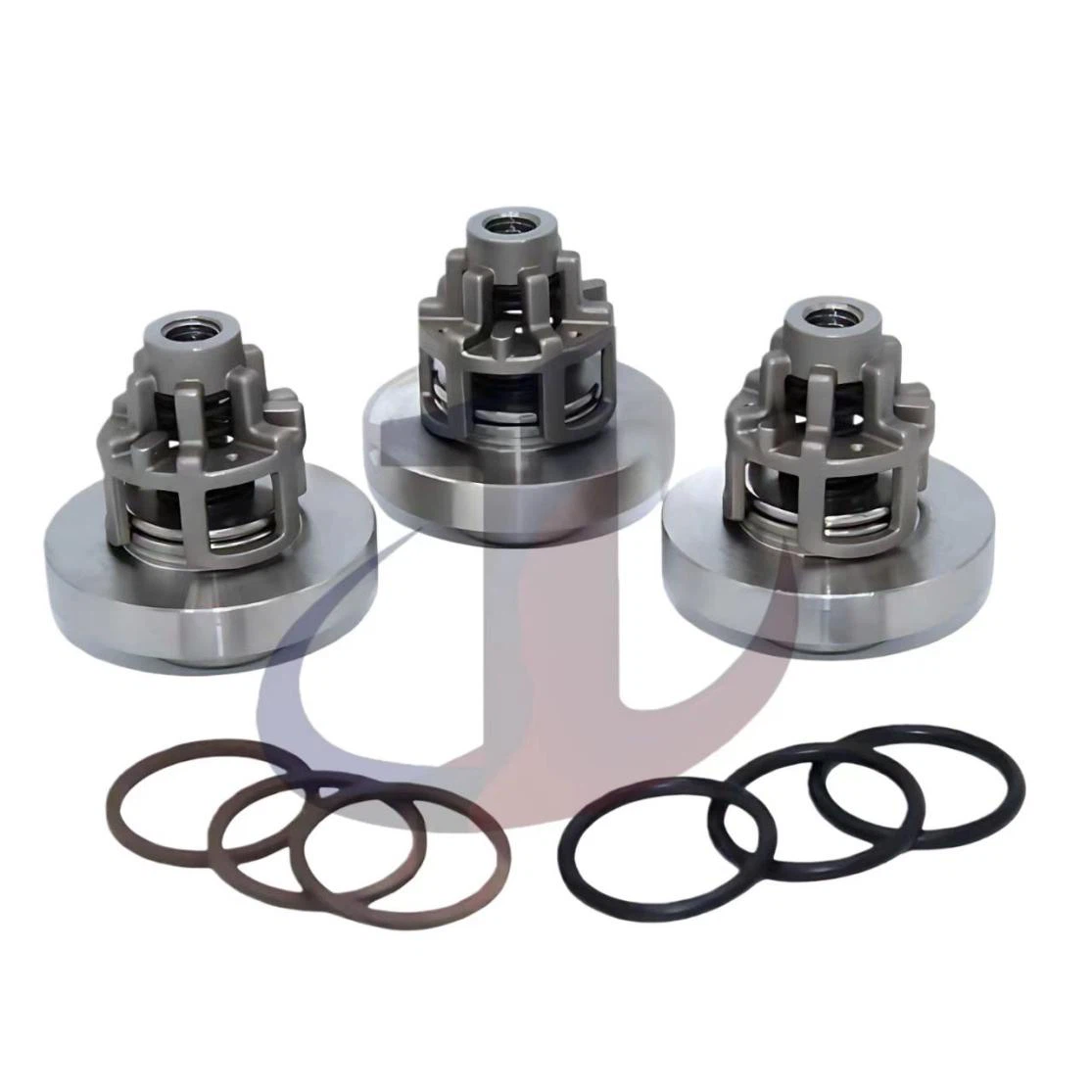

● **Valve Assemblies:** Both inlet and discharge valve components are precision-machined from high-grade stainless steel to ensure structural integrity and corrosion resistance under the high-frequency impact of opening/closing cycles and the scouring of high-velocity fluids.

**Table 4: Fluid End Component Analysis**

**Maintainability & Wear Parts: Designed for Maximum Uptime**

**Packing & Seal Kits**

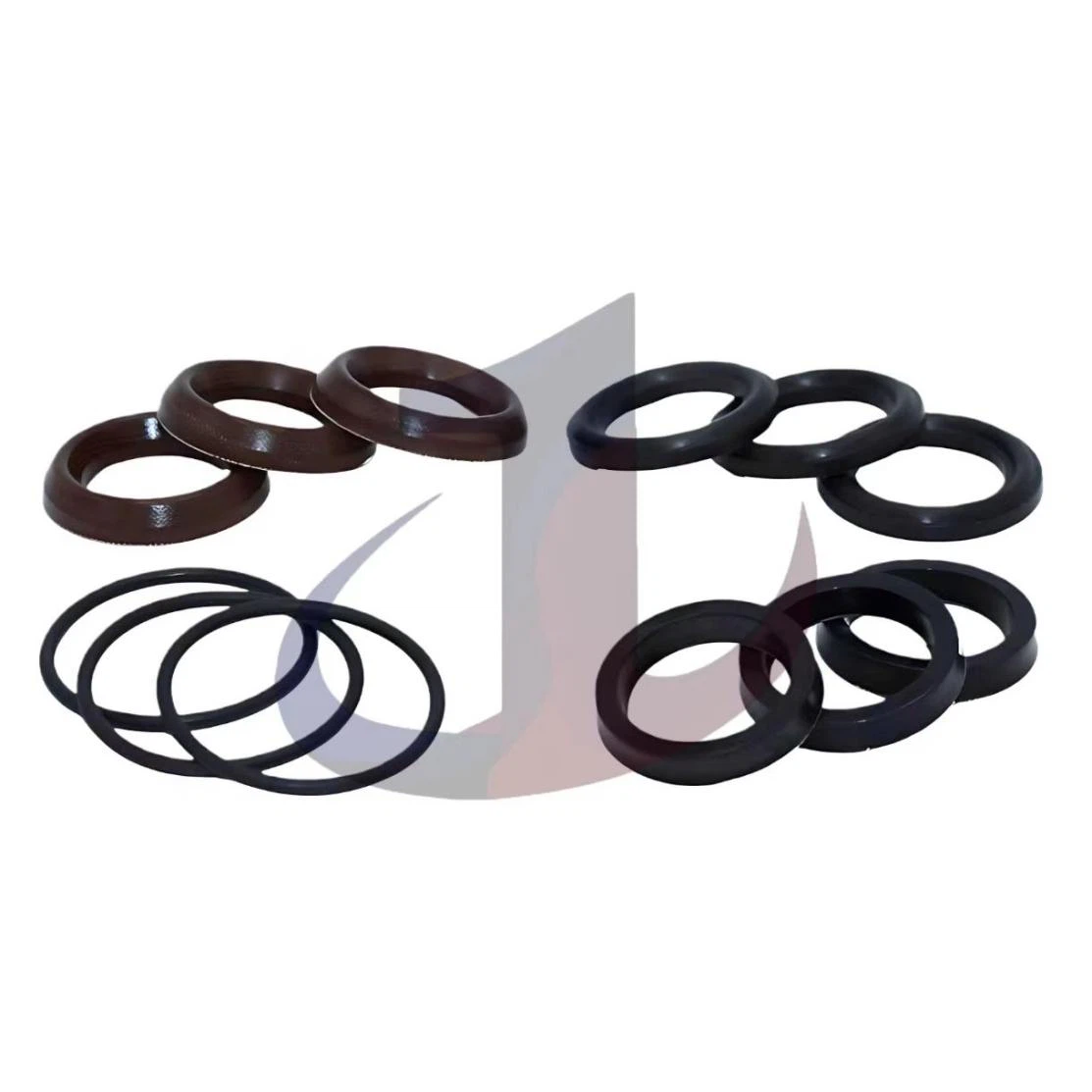

● **Core Repair Kit:** The F2028 Plunger Packing Kit is the designated OEM standard repair kit for the 25mm plungers of the HF25A. This kit contains a full set of packing and O-rings for all three plungers, ensuring a complete fluid end seal refresh in one go.

**Material Deep Dive: Selecting the Best Sealing Solution for Specific Conditions**

Standard OEM packing materials are carefully engineered to provide a reliable balance of performance across a wide range of applications. However, to address specific extreme conditions, a range of high-performance material options are available to help customers further enhance pump durability.

● **NBR (Nitrile Rubber):** The workhorse material for general-purpose seals, NBR offers excellent resistance to petroleum-based oils and fuels. It is suitable for standard water-based slurries and industrial fluids at temperatures up to approximately 180°F (82°C).

● **HNBR (Hydrogenated Nitrile Rubber):** Compared to standard NBR, HNBR provides superior temperature resistance (up to approx. 300°F / 149°C) and enhanced resistance to hydrogen sulfide (H2S) and abrasive fluids. For customers operating in harsher environments, HNBR is a valuable upgrade.

● **FKM (Viton):** Renowned for its exceptional chemical resistance, FKM withstands a wide range of corrosive chemicals, oils, and maintains performance stability at high temperatures up to 400°F (204°C). It is the material of choice for handling corrosive chemicals or high-temperature fluids.

● **Aramid Fiber (Kevlar):** An extremely strong and durable fiber packing known for its ultra-high strength and abrasion resistance. In high-pressure, highly abrasive slurry applications, aramid fiber is often used as an anti-extrusion ring in combination with other sealing materials to prevent the main seal from deforming and failing under pressure.

● **PTFE (Teflon):** Offers near-universal chemical resistance and an extremely low coefficient of friction. PTFE is ideal for handling strongly corrosive chemical media, though its abrasion resistance may be lower than other options, so it is often used in composites.

**Table 5: Wear Parts Breakdown & Material Application Guide**

This table aims to help customers accurately select the most suitable replacement parts based on their unique operating conditions, thereby maximizing pump performance and service life.

The GENERAL HF25A is designed to excel in numerous demanding industrial applications. Its robust capabilities align closely with real-world operational needs, demonstrating exceptional versatility and reliability.

● **Hydro-Excavation:** In this application, the pump needs both strong soil-breaking power and durability to handle recirculated slurry. The HF25A's ability to generate pressures up to 4060 PSI provides ample energy for high-pressure water jets to effectively break up compacted soil. Its rugged fluid end, equipped with the corrosion-resistant 420 stainless steel manifold and ultra-hard ceramic plungers, is perfectly suited to handle the continuous scouring from abrasive particles like sand in the return slurry. The integrated packing cooling system ensures stable operation during the common extended continuous work cycles of excavation, preventing downtime due to overheating.

● **Sewer Jetting & Industrial Cleaning:** The high flow rate of 19.6 GPM provides the substantial water volume required for flushing and cleaning large pipes, tanks, and industrial equipment surfaces. The efficient spherical valve design minimizes internal pressure losses, ensuring energy is effectively transferred to the nozzle to form a powerful cleaning jet, thereby increasing operational efficiency.

● **Oil & Gas Field Support Services:** Although the HF25A is not designed as the primary circulation pump for large drilling operations, its outstanding durability and high-pressure capability make it valuable in oilfield support services. It can be used for tasks such as pipeline pressure testing, injection for small fracturing operations (frac fluid mixing), and cleaning/maintenance of heavy equipment on site, demonstrating its multifunctional value.
